General Introduction

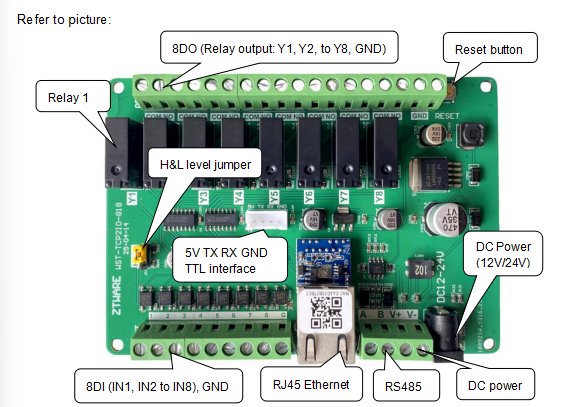

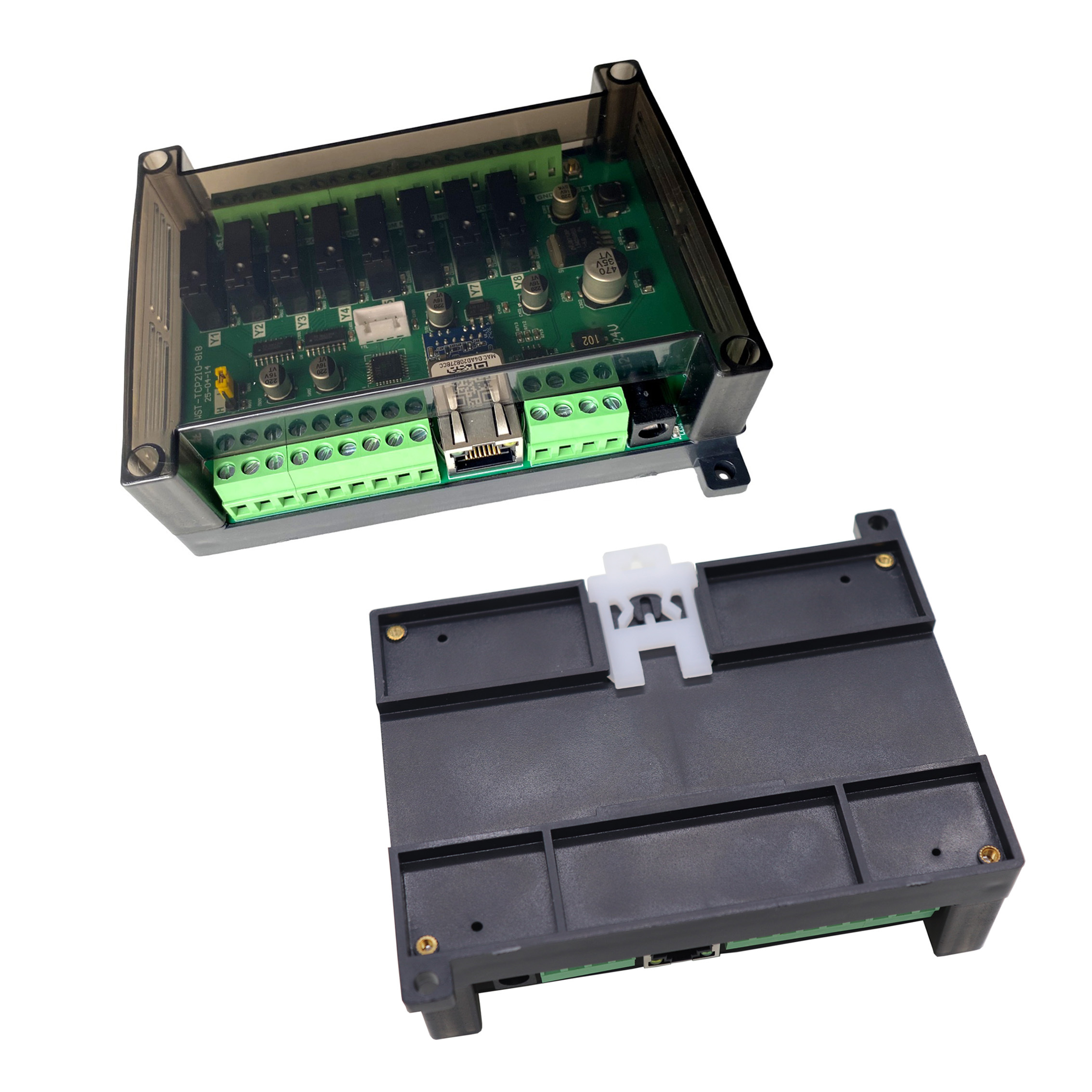

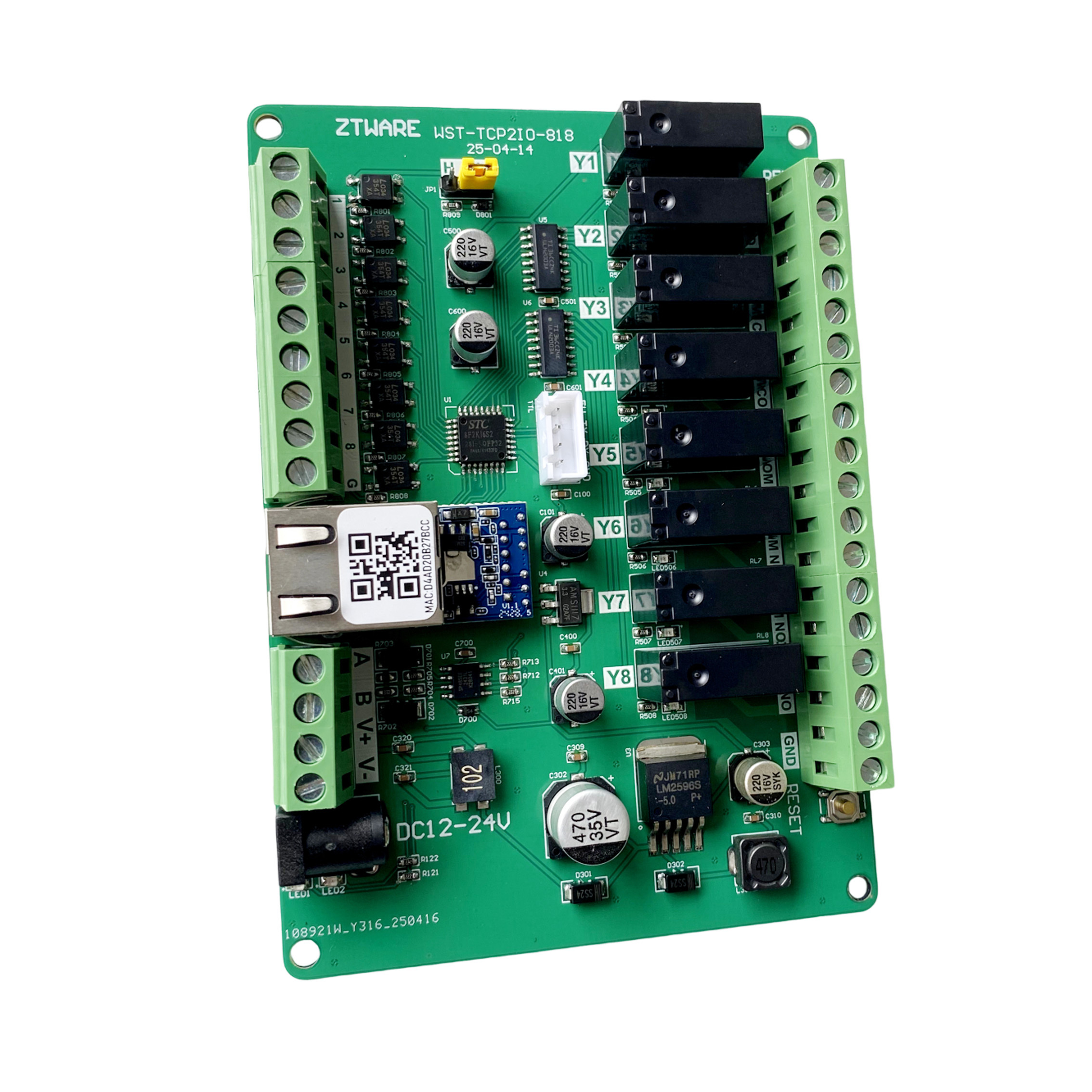

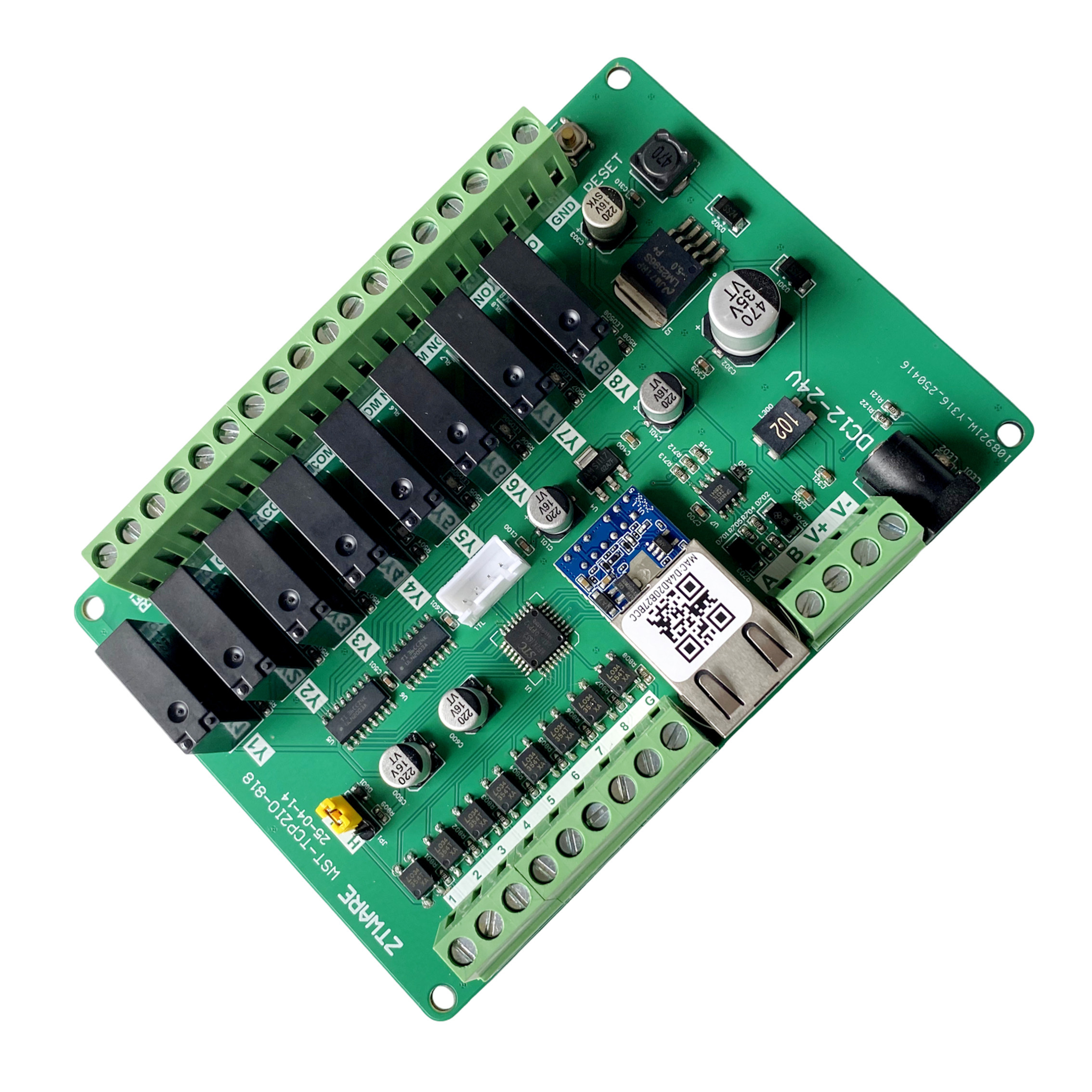

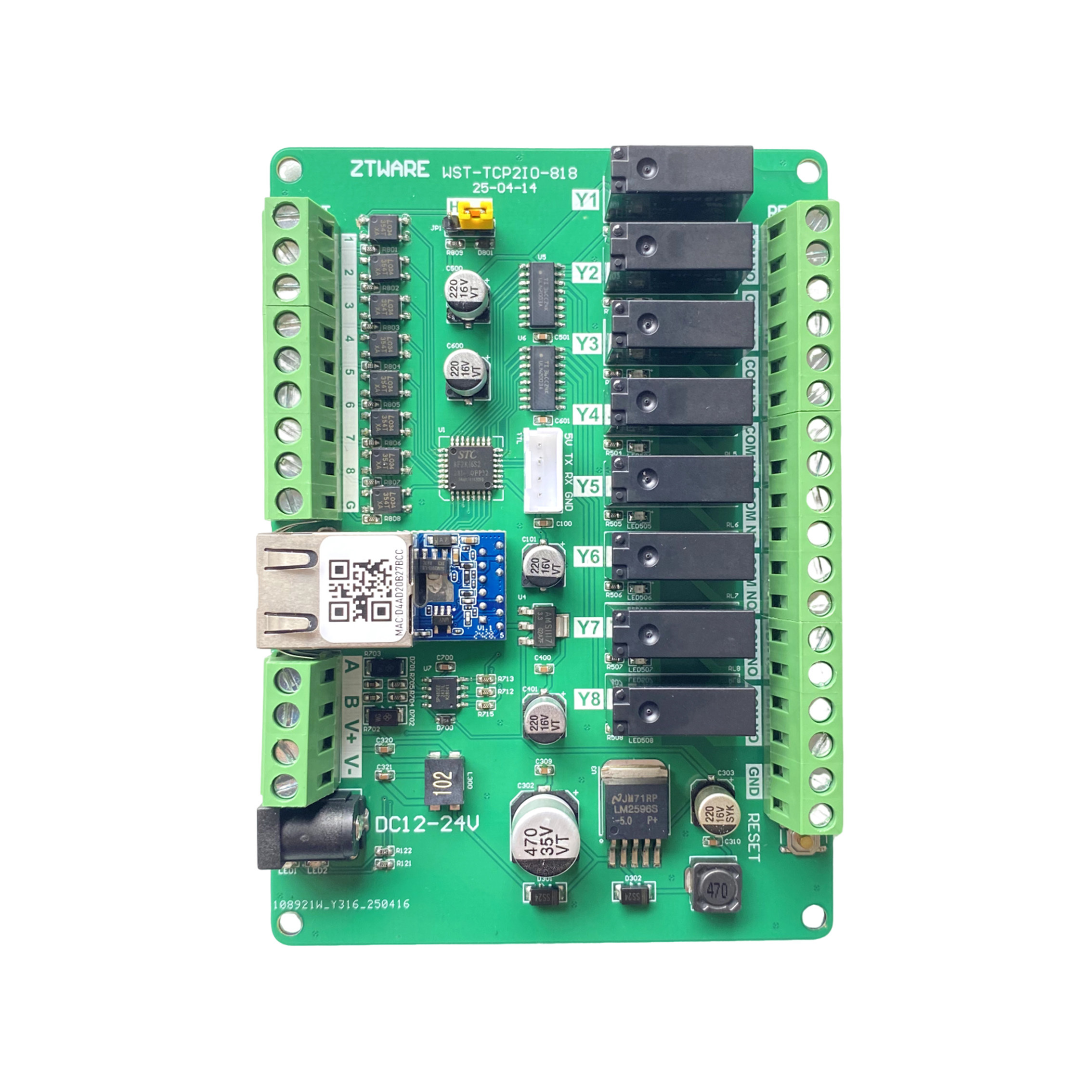

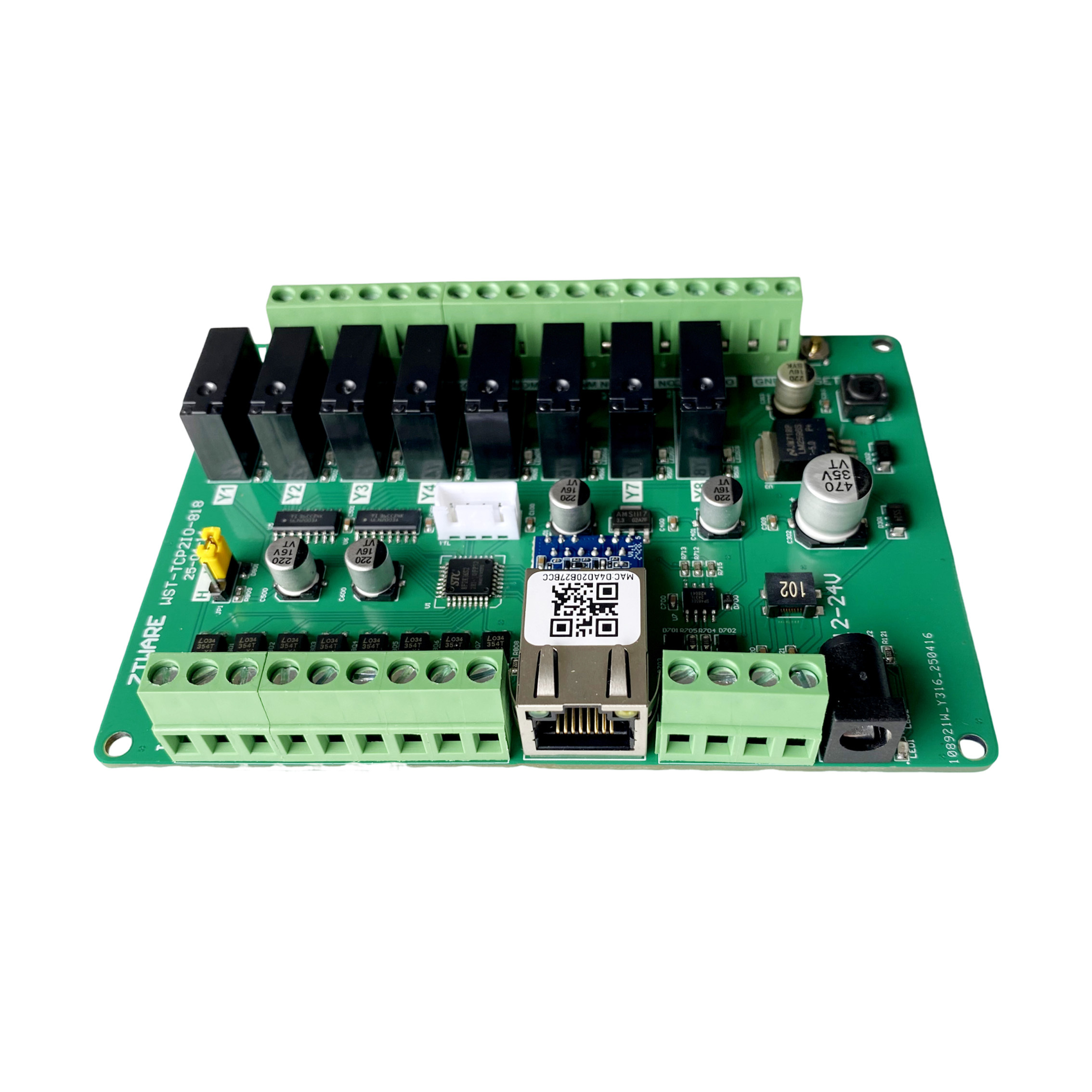

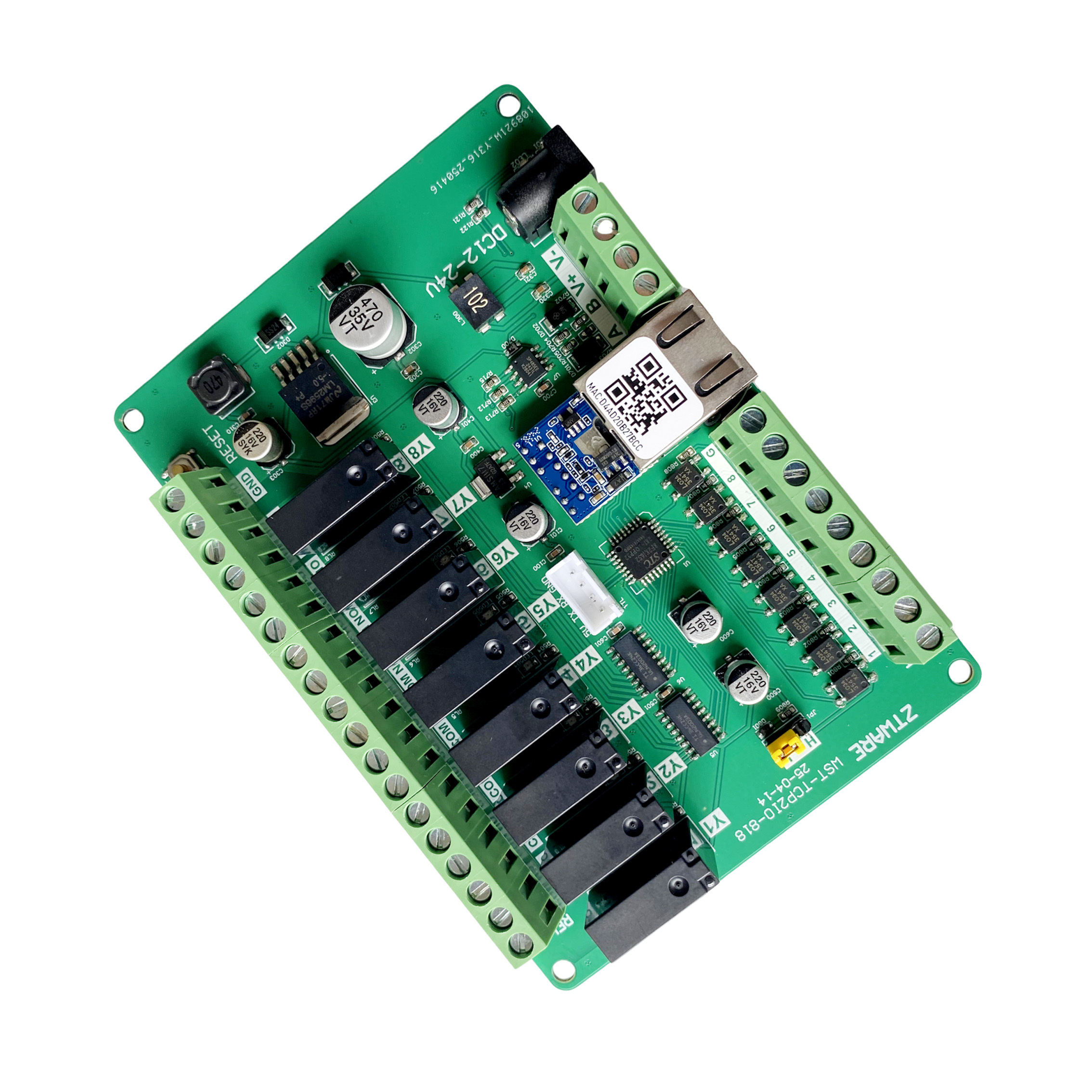

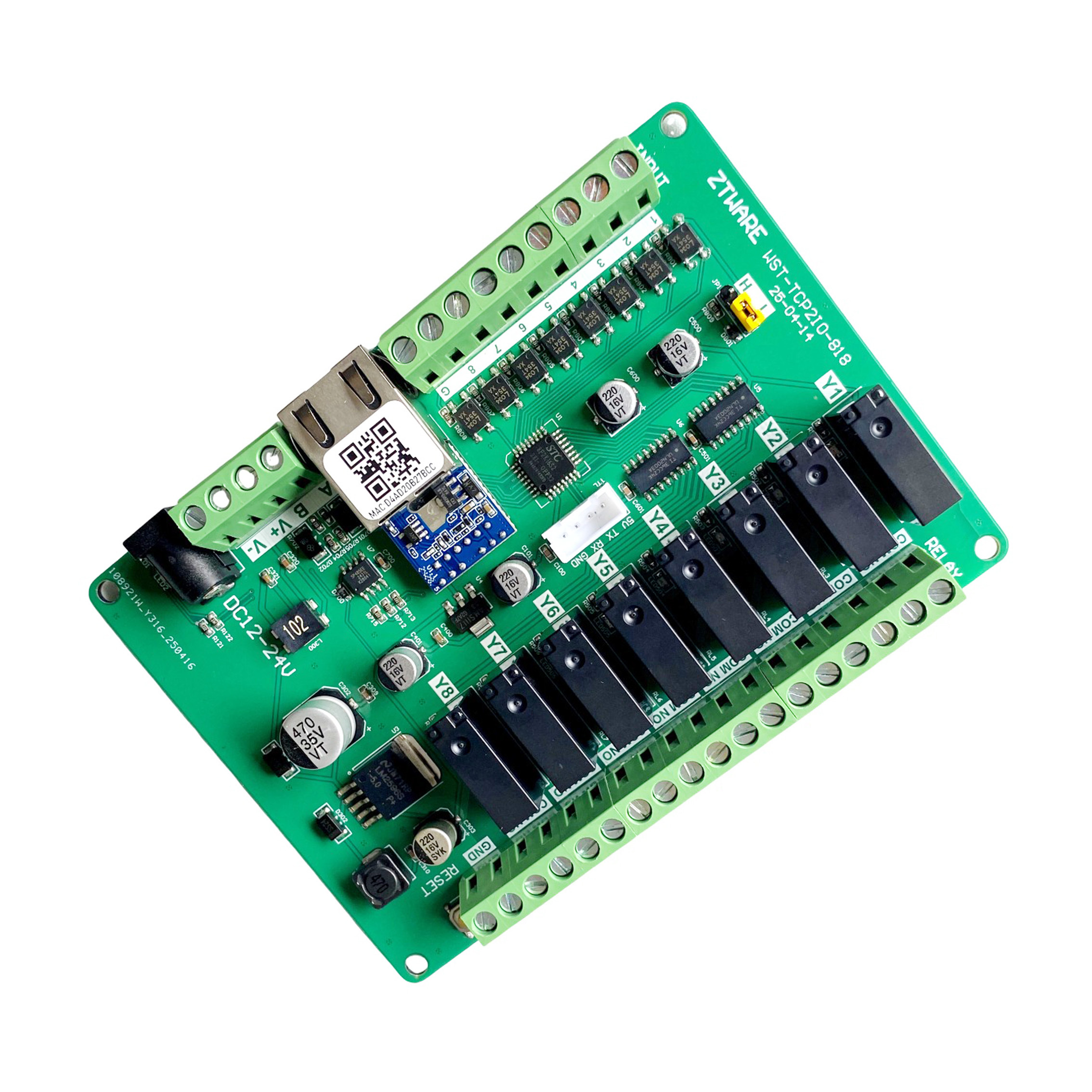

WST-TCP2IO-818 is a high performance and good price IOT network module. It has 8 channels of digital input and output interfaces with a 10M/100M Ethernet RJ45 port can be compatible for correspondence of TCP/IP communication. User can easily and quickly integrate WST-TCP2IO-818 into own system to realize remote, LAN and local control which based on Ethernet and RS485. It was developed to interface industry control area such as automatic light system, motor control, door access control, etc. The device is easy to be connected and can be remotely control by computer (include laptop, Raspberry Pi, Jetson nano, etc.) based on our free SDK. The controller working on DC12V to DC24V wide power supply, and the relay output can be controlled of AC105V to AC250V (10A) equipment.
ProductFeatures:
- Using high quality electronic integrated module, provide good electrical properties.
- Support 8 channel digit input and 8 channel digit output (relay output)
- Working power: DC12V or DC24V
- Restore factory default
- Upgrade firmware via TTL network
- Work mode: RS485, TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client, Modbus RTU
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Support various LED to indicate work status
- Guarantee reliable data transmission and long working life.
- Free SDK (protocol, testing software and so on)
- Support customization (OEM/ODM)
Technical Parameter

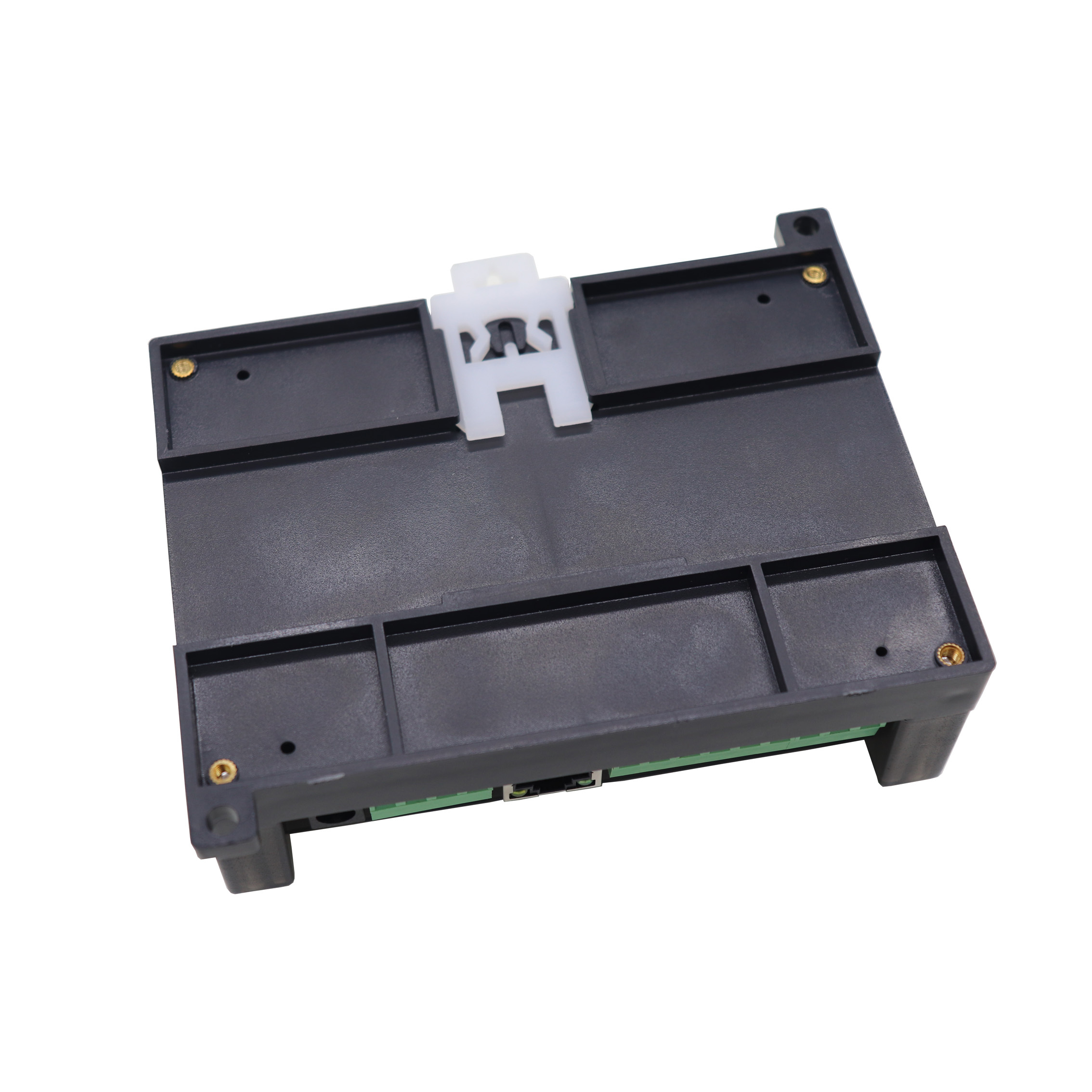

- Size: 125mm x 100mm x 43mm

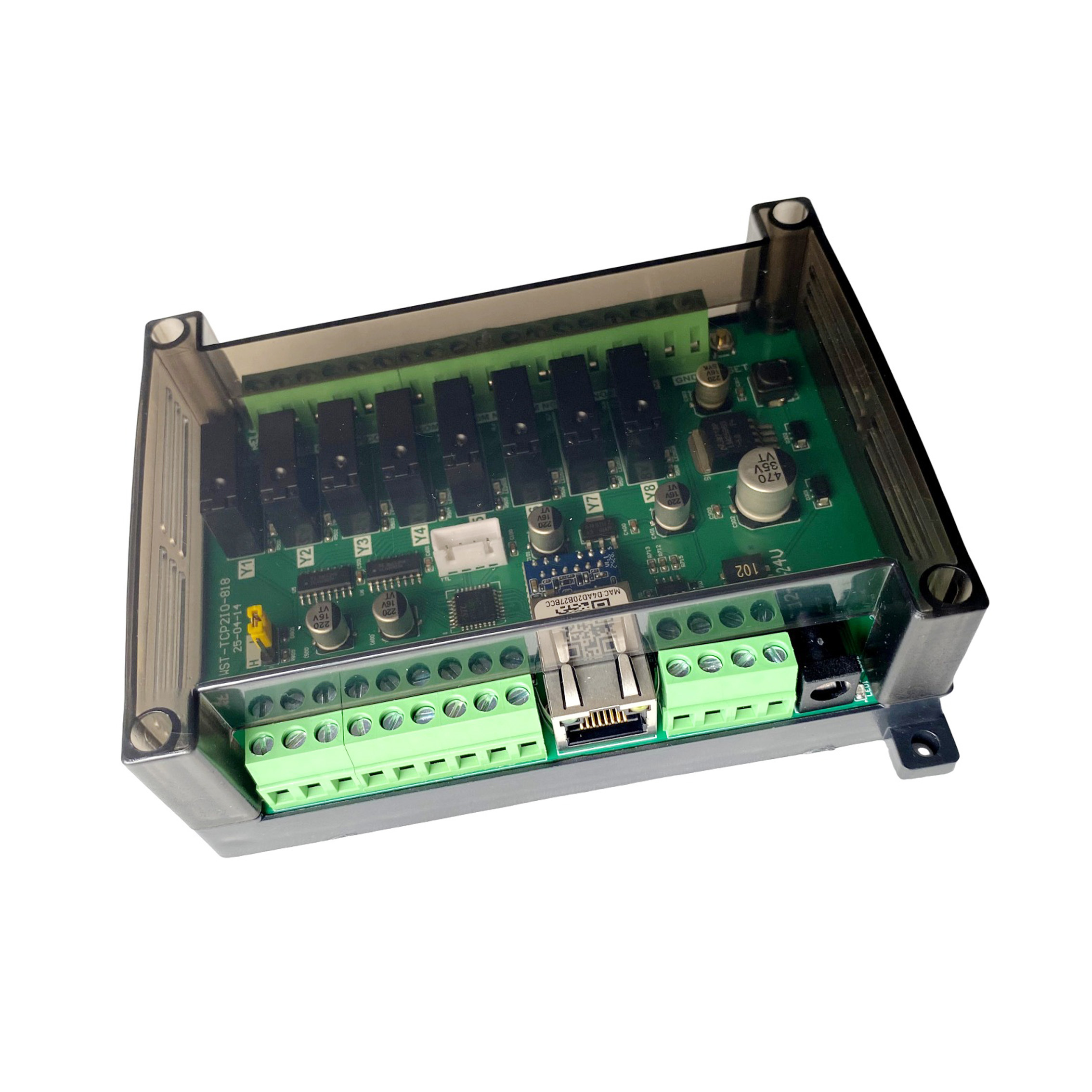

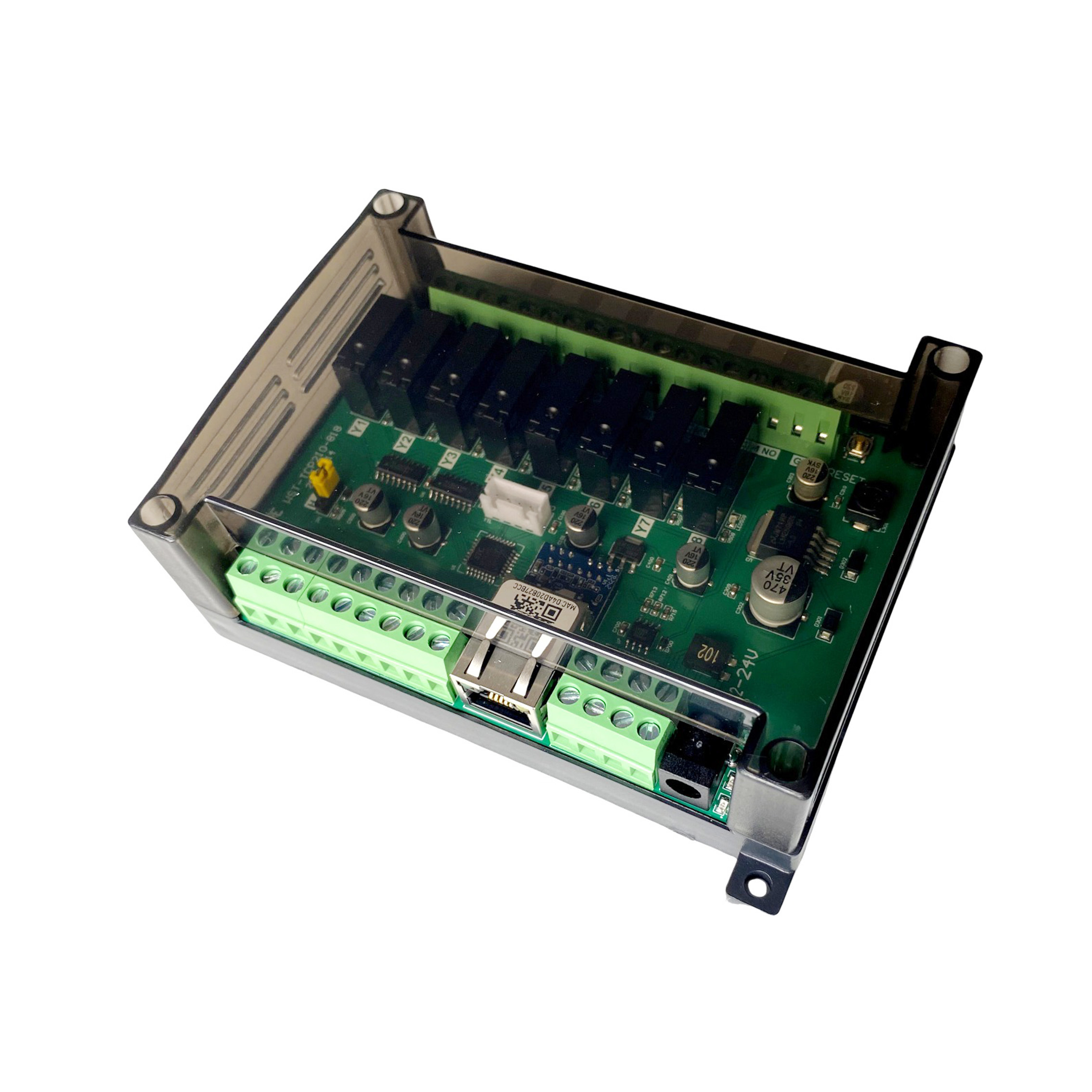

- Weight: 116g (PCB board only), or 192g (PCB board with housing)
- Power supply: DC12V to DC24V/1A, suggest DC12V
- Static working current: <220mA (DC12V)
- Dynamic current: when all relay closed less than 400mA (under DC12V power)
- Input: 8 channel digit input
- Output: 8 channel relay output
- Relay contact capacity: AC250V/10A, AC110V/12A
- Communication interface: 10M/100M RJ45 Ethernet and UART-TTL
- Baud rate: 115200BPS (default, can set by software)
- Address ID: 1 (default ID, can set by software, range: 1 to 254)
- Indicator: LED indicator for power, communication and relay action
- Reset button: press 3s for return to factory settings
- Ethernet module: USR-K5 (default)
- Network protocol: support RS485, Ethernet, ARP, IP, UDP, TCP, Modbus RTU, etc.
- Ethernet user name: admin, Password: admin, Default IP: 192.168.1.7
- Network mode: TCP client\server (max for 4 Clients), UDP Client\Server, HTTDP Client
- TTL interface usage: design for communication testing and upgrade firmware.
- Operating Temperature: -40-85 C (-40-185 F)
- Storage Temperature:-40～85 °C（-40～185 °F）
- Relative humidity: 5%-95% (no condensation)
- Average fault-free time: 100000 hours
