General Introduction

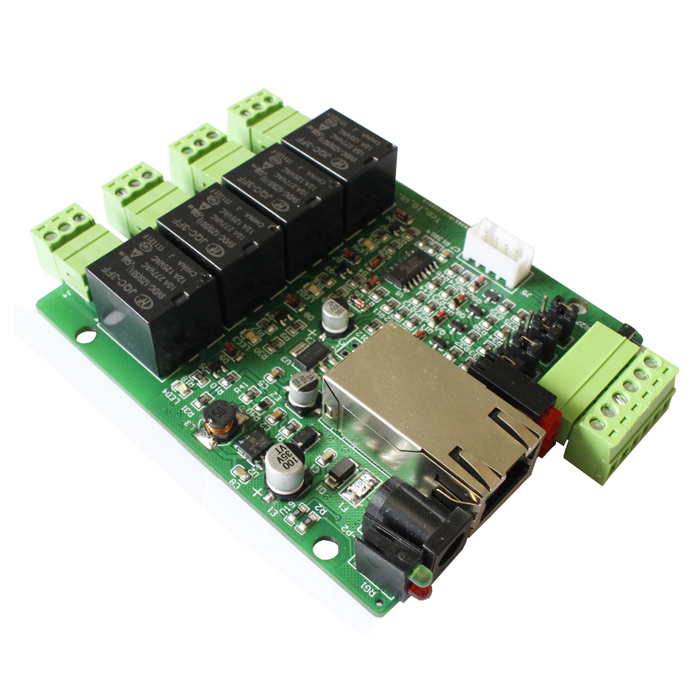

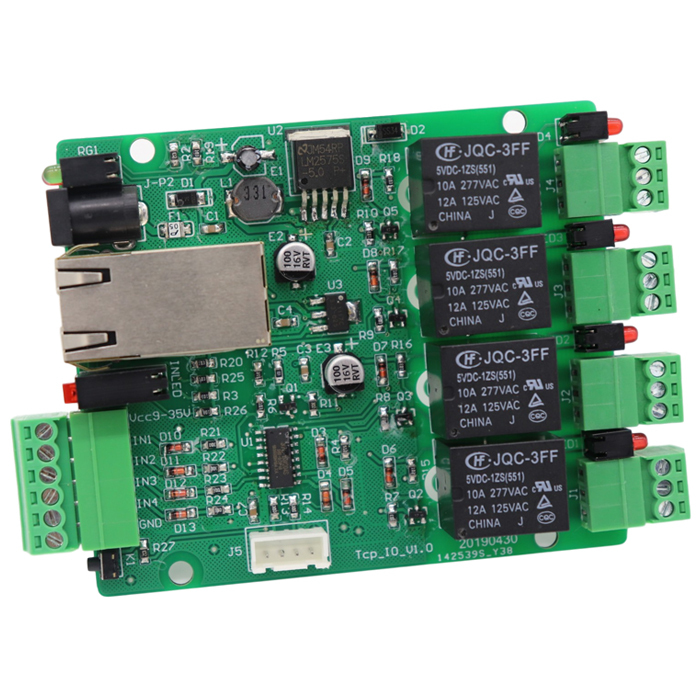

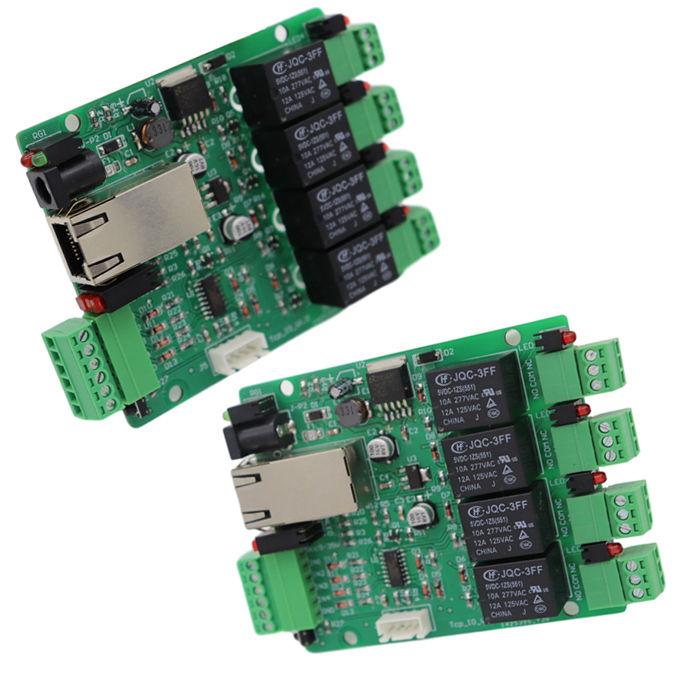

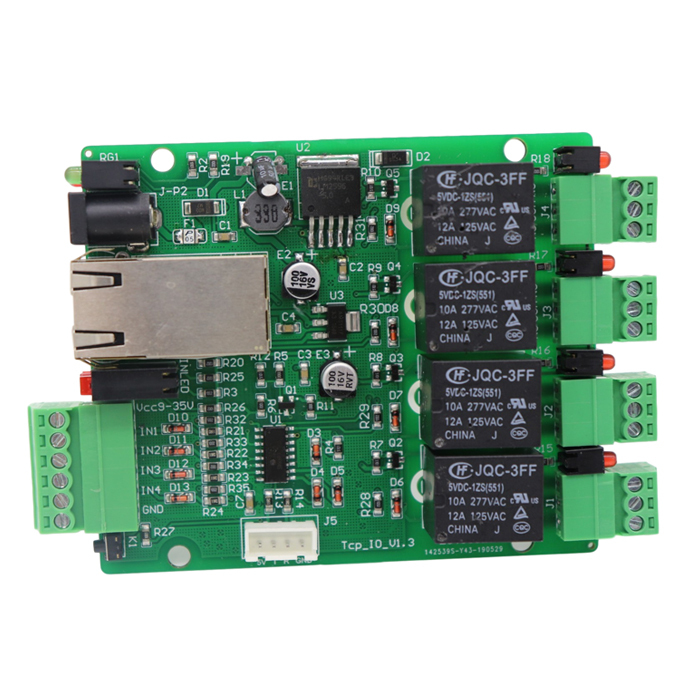

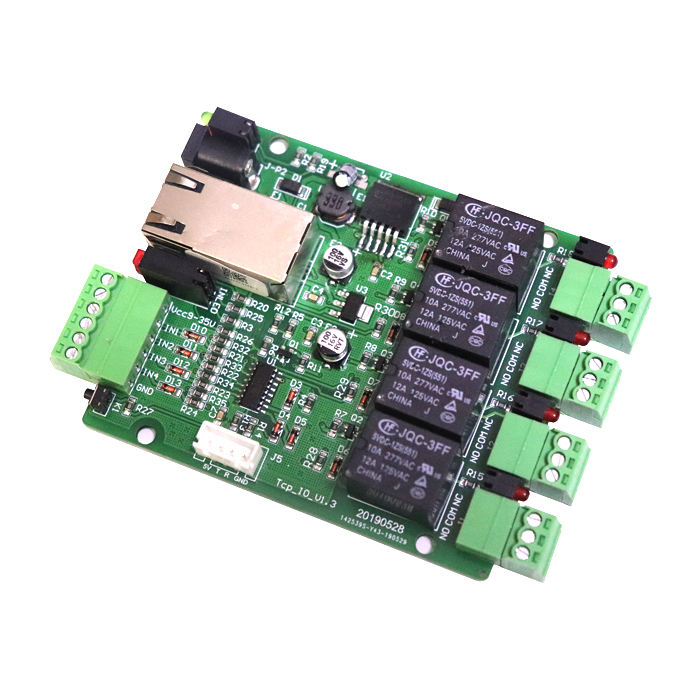

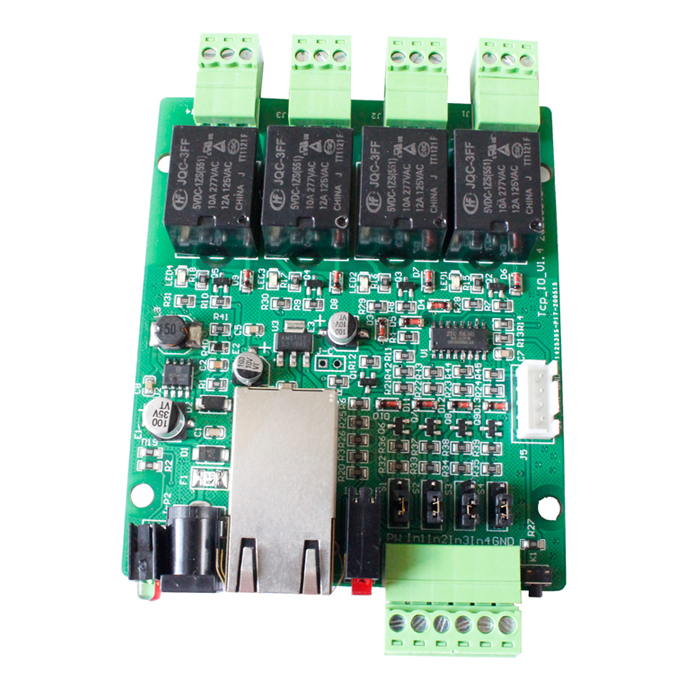

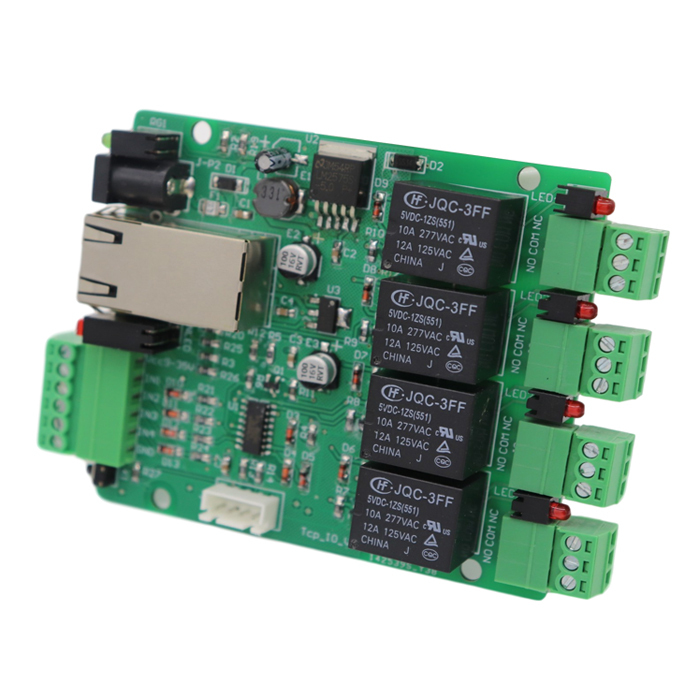

WS-IO424TCP is a high performance and good price IOT network controller. It has 4 channel of input and output interfaces with a 10M/100M Ethernet RJ45 port can be compatible for correspondence of TCP/IP communication. It was developed to interface industry control area such as automatic light system, motor control, door access control, etc. The device is easy to be connected and can be remotely control by computer (include laptop, Raspberry Pi, Jetson nano,etc.) based on our free SDK. The controller working on DC9V to DC35V wide power supply, and the relay output can controlled of AC105V to AC250V (10A) equipment.
ProductFeatures
- Using high quality electronic integrated module, Provide good electrical properties.
- Support 4 channel relay input and output
- Working power: DC12V or DC24V (exact DC9V~DC35V ok).
- Restore factory default
- Upgrade firmware via TTL network
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Support various LED to indicate work status
- Guarantee reliable data transmission and long working life.
- Support customization
Technical Parameter
- Size: 110mm x 76mm x 20mm
- Weight: about 50g (PCB board, without steel housing)
- Power supply: DC9V to DC35V/1A, suggest DC12V
- Static working current: <160mA (DC12V)
- Dynamic current: when all relay closed less than 320mA (under DC12V power)
- Output: 4 channel relay output
- Relay contact capacity: AC250V/10A, AC110V/12A
- Communication interface: 10M/100M RJ45 Ethernet and UART-TTL
- Baud rate: 9600BPS (default, can set by software)
- Address ID: 1 (default ID, can set by software, range: 1 to 254)

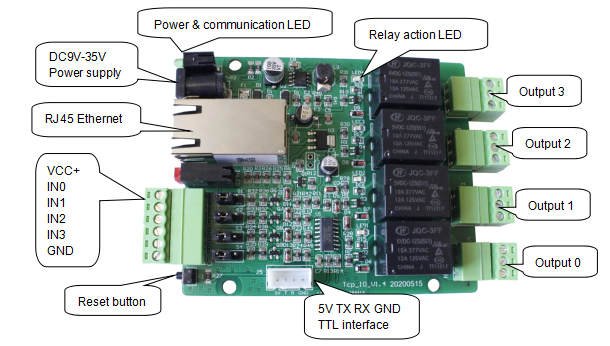

- Indicator: LED indicator for power, communication and relay action
- Reset button: short press 1s for reset relay, press 10s for return to factory settings
- Ethernet module: USR-K2 (default), USR-K3 for optional (more functions)
- Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.
- Ethernet user name: admin, Password: admin, Default IP: 192.168.0.7
- Network mode: TCP client\server (max for 4 Clients), UDP Client\Server, HTTDP Client
- TTL interface usage: design for communication testing and upgrade firmware.
- Operating Temperature:-40-85 C (-40-185 F)
- Storage Temperature:-40～85 °C（-40～185 °F）
- Relative humidity: 5%-95% (no condensation)
- Average fault-free time: 100000 hours
