General Introduction

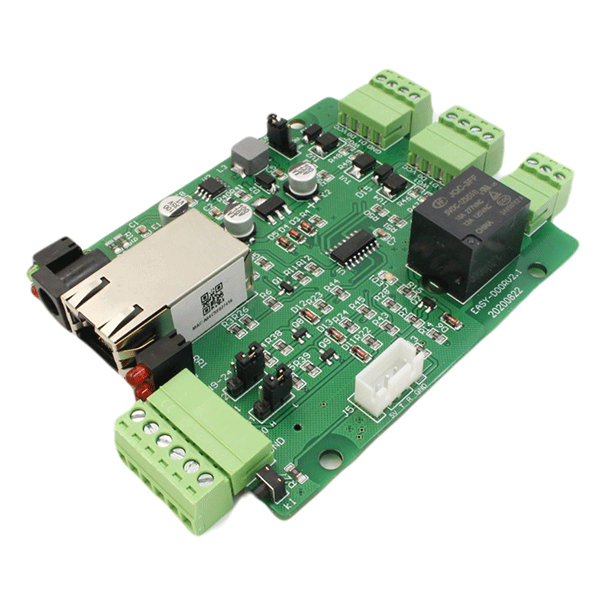

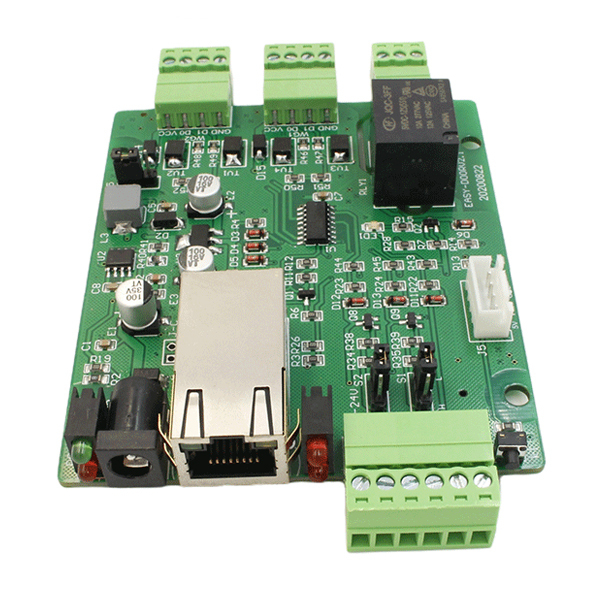

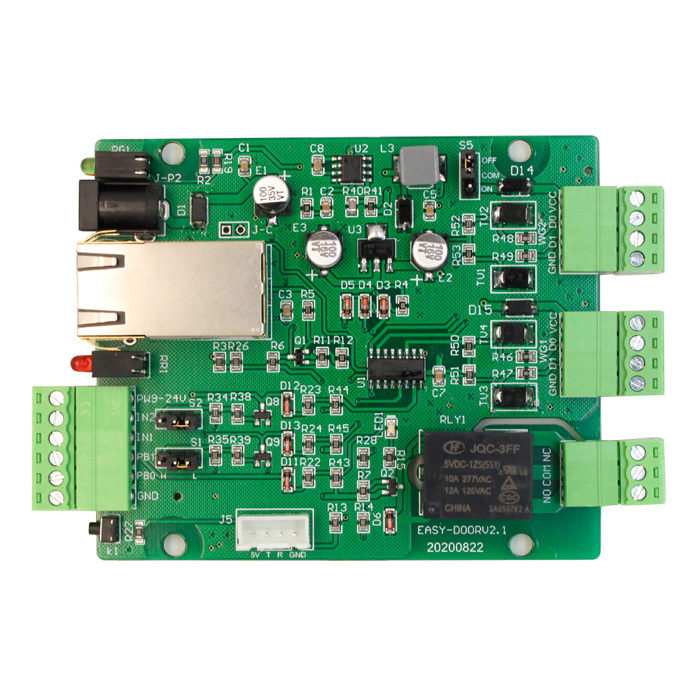

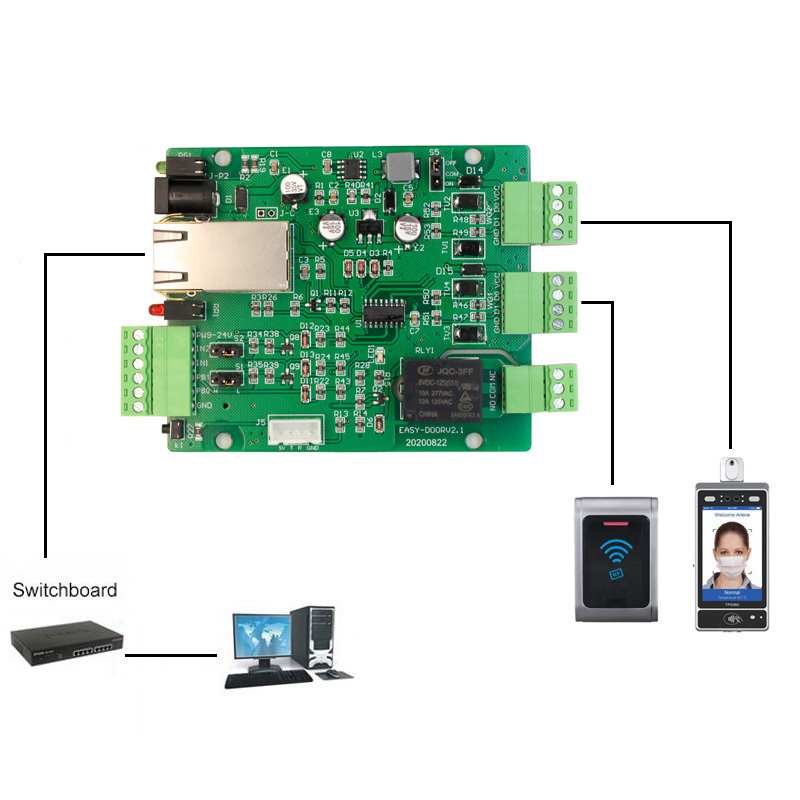

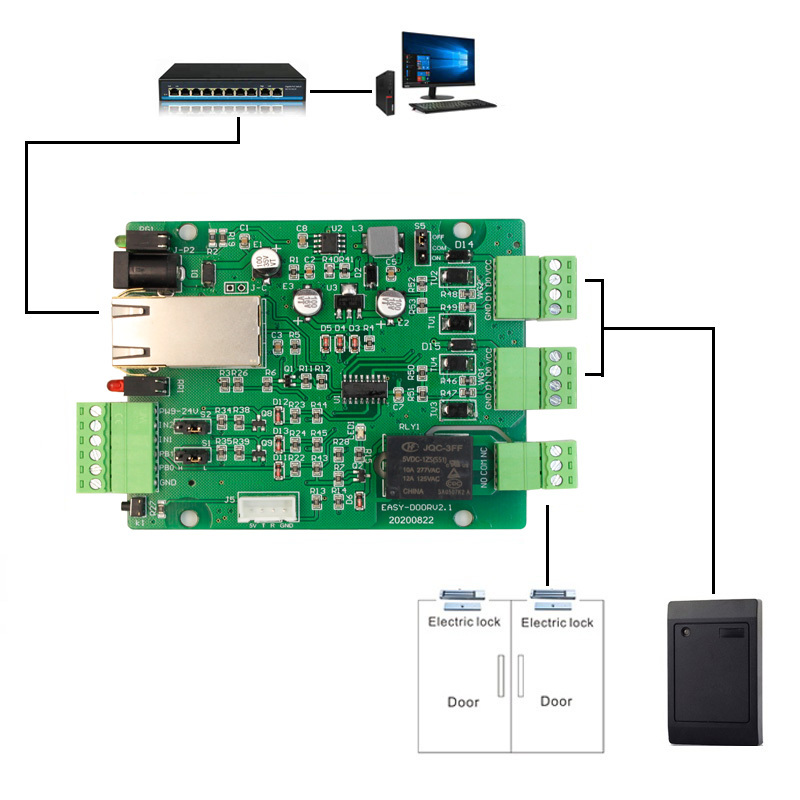

This controller was developed to interface access control system. It can be a TCP/IP to 2CH Wiegand converter, and also can be a simply TCP/IP network single door access controller. It has 2CH of Wiegand interface, 2CH input interface with one PIN to support push button (manual door open switch), 1 relay output and a 10M/100M Ethernet RJ45 port can be compatible for correspondence of TCP/IP communication. It can connect 2 Wiegand RFID card readers interface to computer via TCP/IP network. And also can send card numbers from computer to access controller Wiegand input interface by Wiegand 26bit, 34bit, 66bit or other Wiegand bit depend on each project request. The controller working on DC9V to DC24V wide power supply, and also provide a TTL communication interface for testing and upgrade purpose. Consider its cheap price and good quality, it is really a good IOT Wiegand control device for access control.
ProductFeatures
- Using high quality electronic integrated module, Provide good electrical properties.
- Support 2 channel Wiegand input and output
- Support 2 channel dry contact electric input

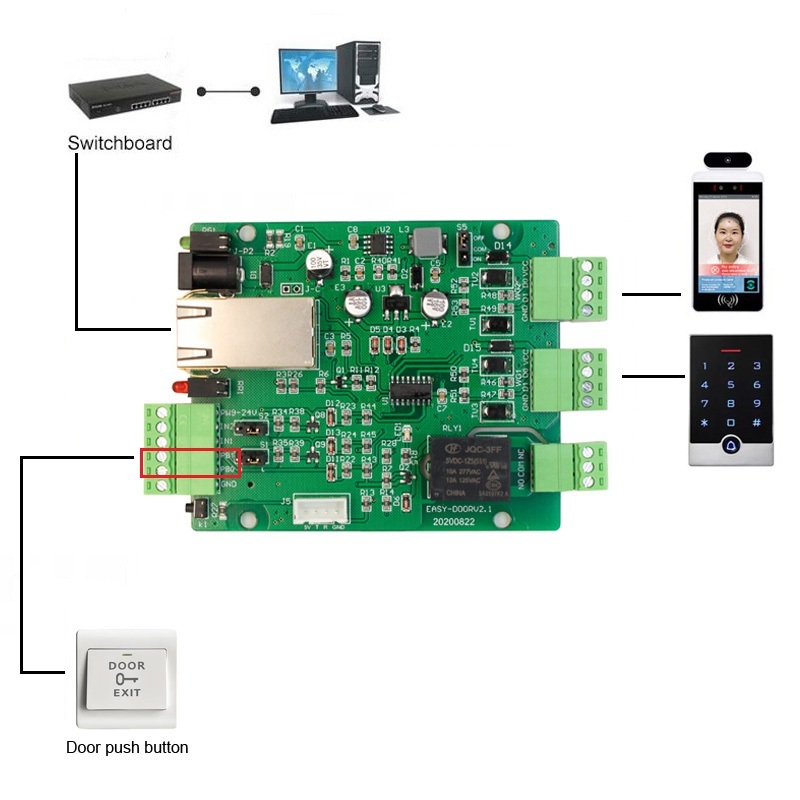

- Support 1 push button
- Provide 1 channel of relay output
- Working power: DC9V to DC24V.
- Restore factory default
- Upgrade firmware via TTL network
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Support various LED to indicate work status
- Guarantee reliable data transmission and long working life.
- Set software watchdog timer (about 1s for restart) for keep the device working fine.
- Support customization
Technical Parameter
- Size: 110mm x 76mm x 20mm

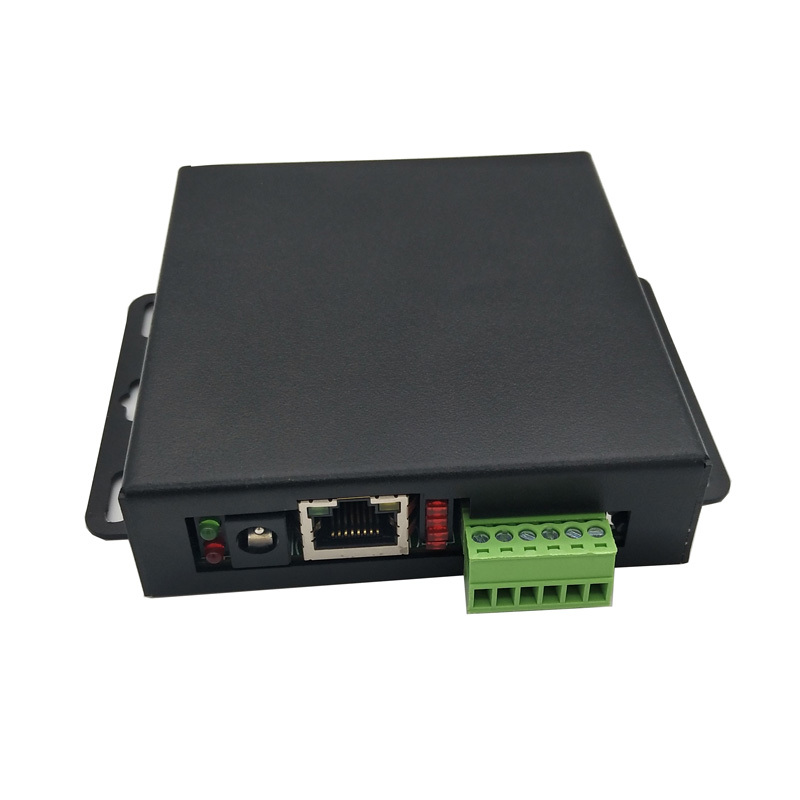

- Weight: about 50g (PCB board, without steel housing)
- Power supply: DC9V to DC24V/1A, suggest DC12V
- Static working current: <150mA (DC12V)
- Dynamic current: when all relay closed less than 320mA (under DC12V power)
- Wiegand interface: support 2CH Wiegand input and output (WG26/34/66 bit)
- Input: support 2CH dry contact electric input (provide jump for set high/low level)
- Output: 1 channel of relay output, 1 channel of push button output
- Communication interface: 10M/100M RJ45 Ethernet and UART-TTL
- Baud rate: 9600BPS (default, can set by software)
- Address ID: none (defaults ID none, can set by command, range: 1 to 255)

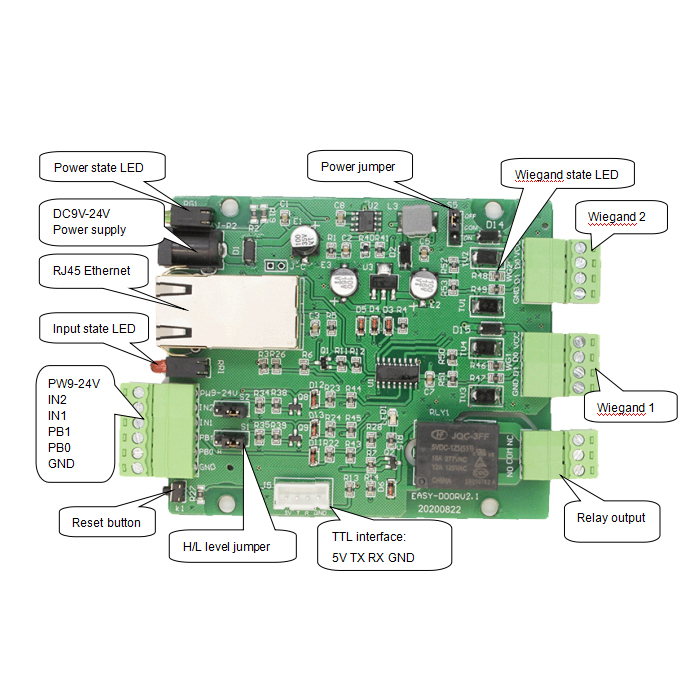

- Indicator: LED indicator for power, TCP/IP communication and Wiegand communication
- Reset button: press it about 3s for return to factory settings (after 4CH input LED bright red reset ok)
- Ethernet module: USR-K6 or USR-K2, other modules for optional
- Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.
- Ethernet user name: admin, Password: admin, Default IP: 192.168.0.7
- Network mode: TCP client\server (max for 4 Clients), UDP Client\Server, HTTDP Client
- TTL interface: DC5V, TX, RX, GND, design for testing and upgrade firmware.
- Operating Temperature: -40-85 C (-40-185 F)
- Storage Temperature: -40～85 °C（-40～185 °F）
- Relative humidity: 5%-95% (no condensation)
- Software watchdog timers: about 1s restart.
- Average fault-free time: 100000 hours
Application field of WST-TCP2WG12
Security access control, parking management, time attendance
Industrial automation, motor control, light power control system
Security and protection monitoring for area
Smart home, power control, environmental monitoring, intelligent agriculture
Automatic payment, POS system, rice selling system
