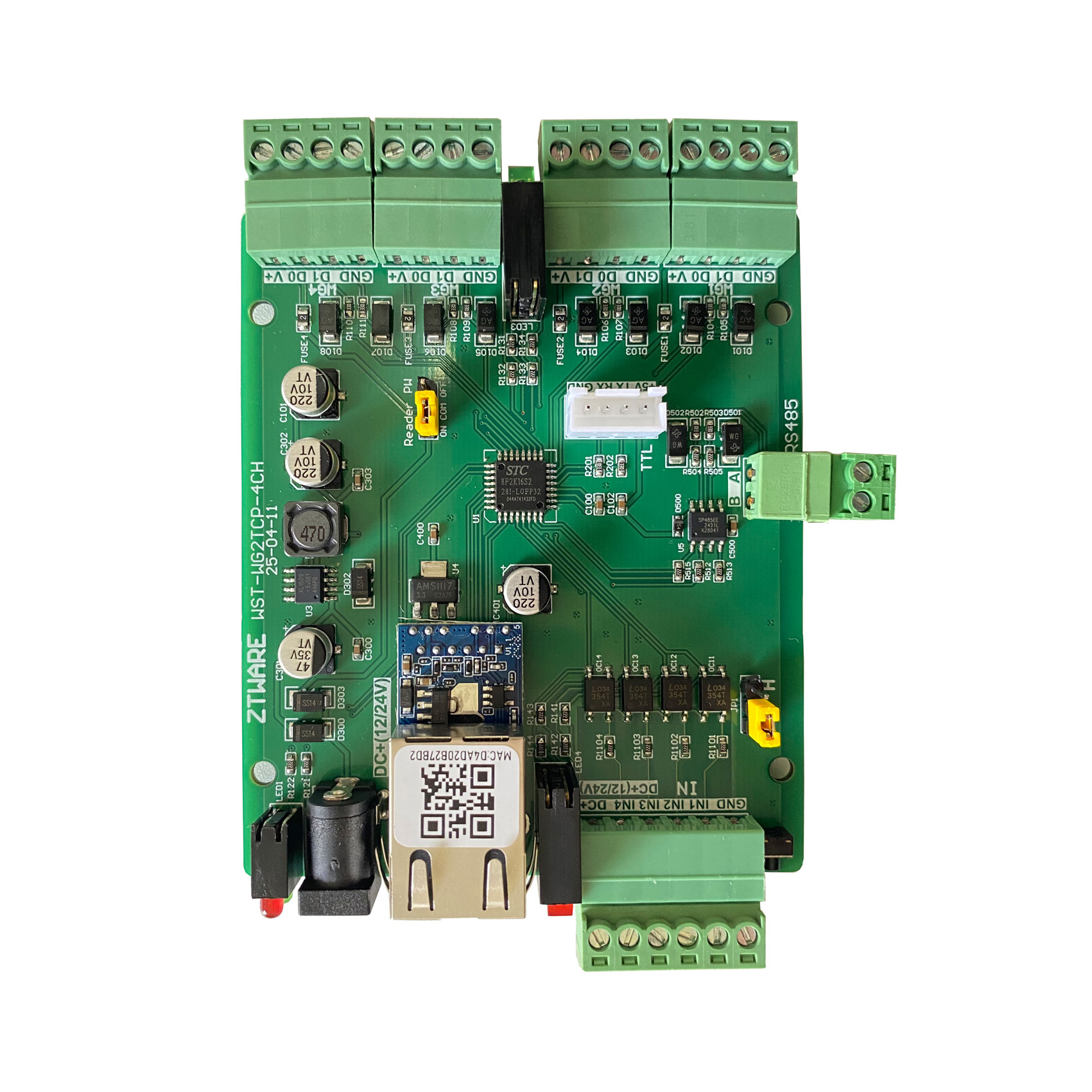

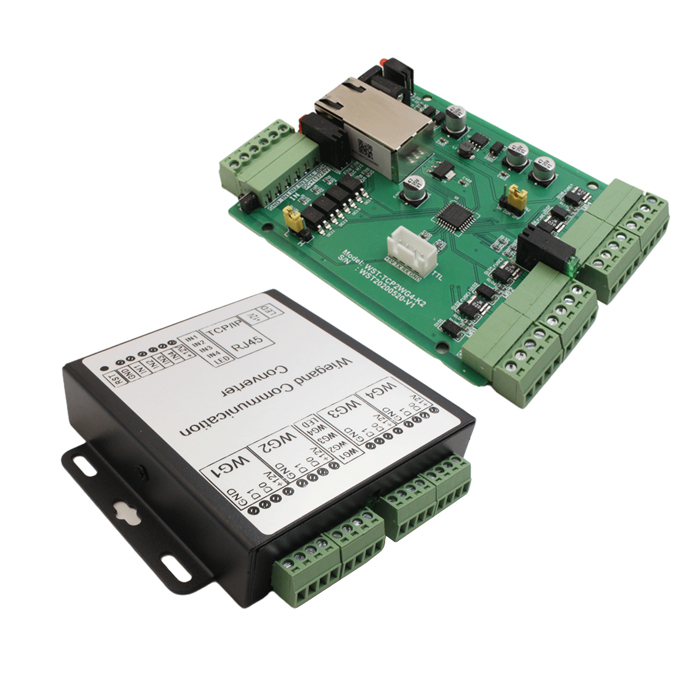

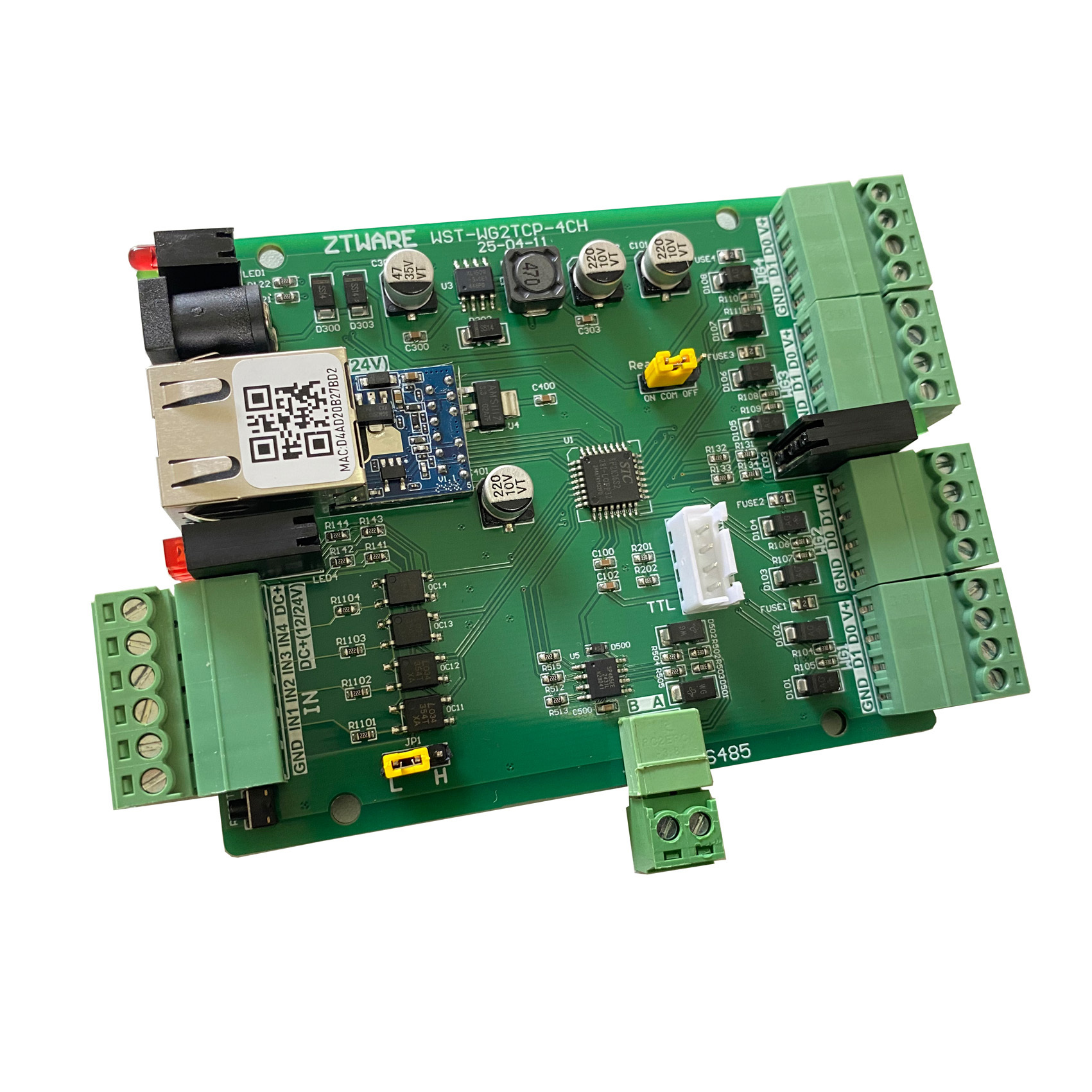

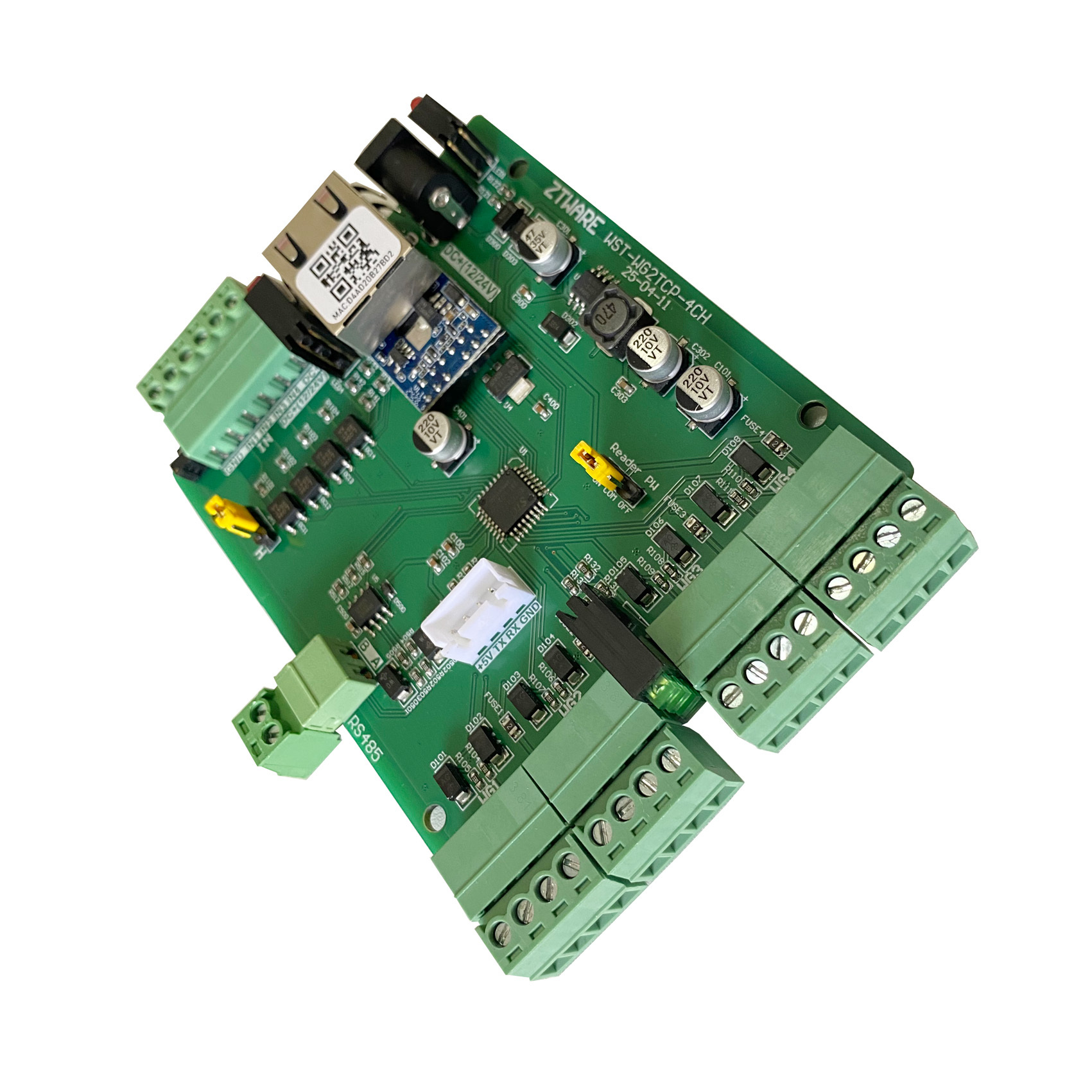

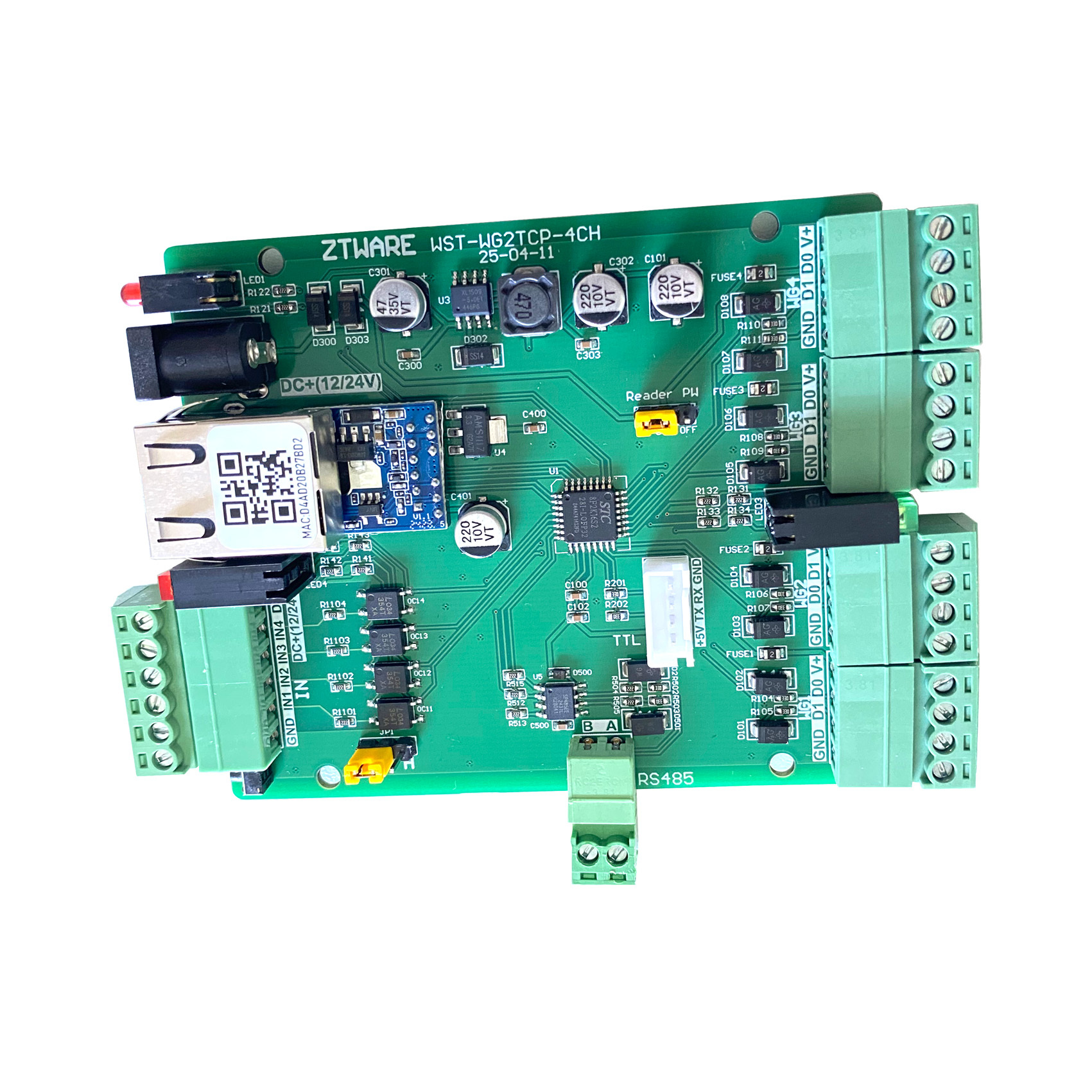

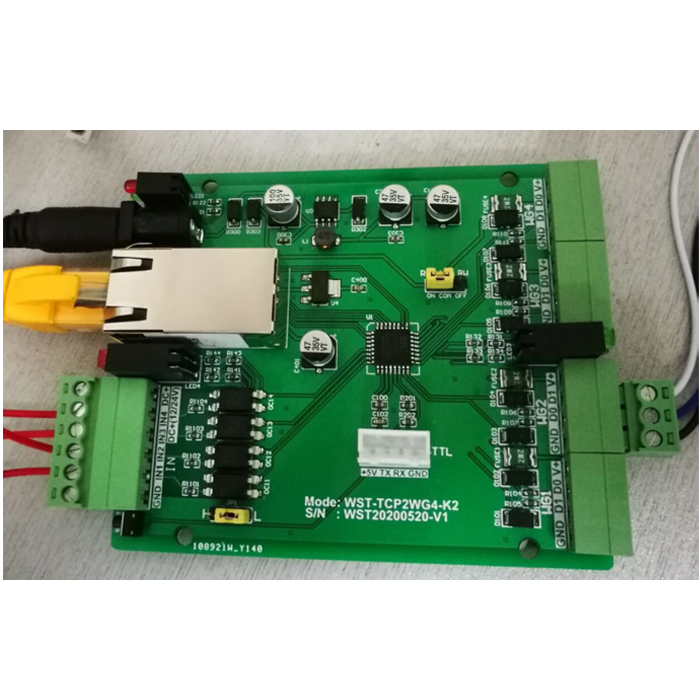

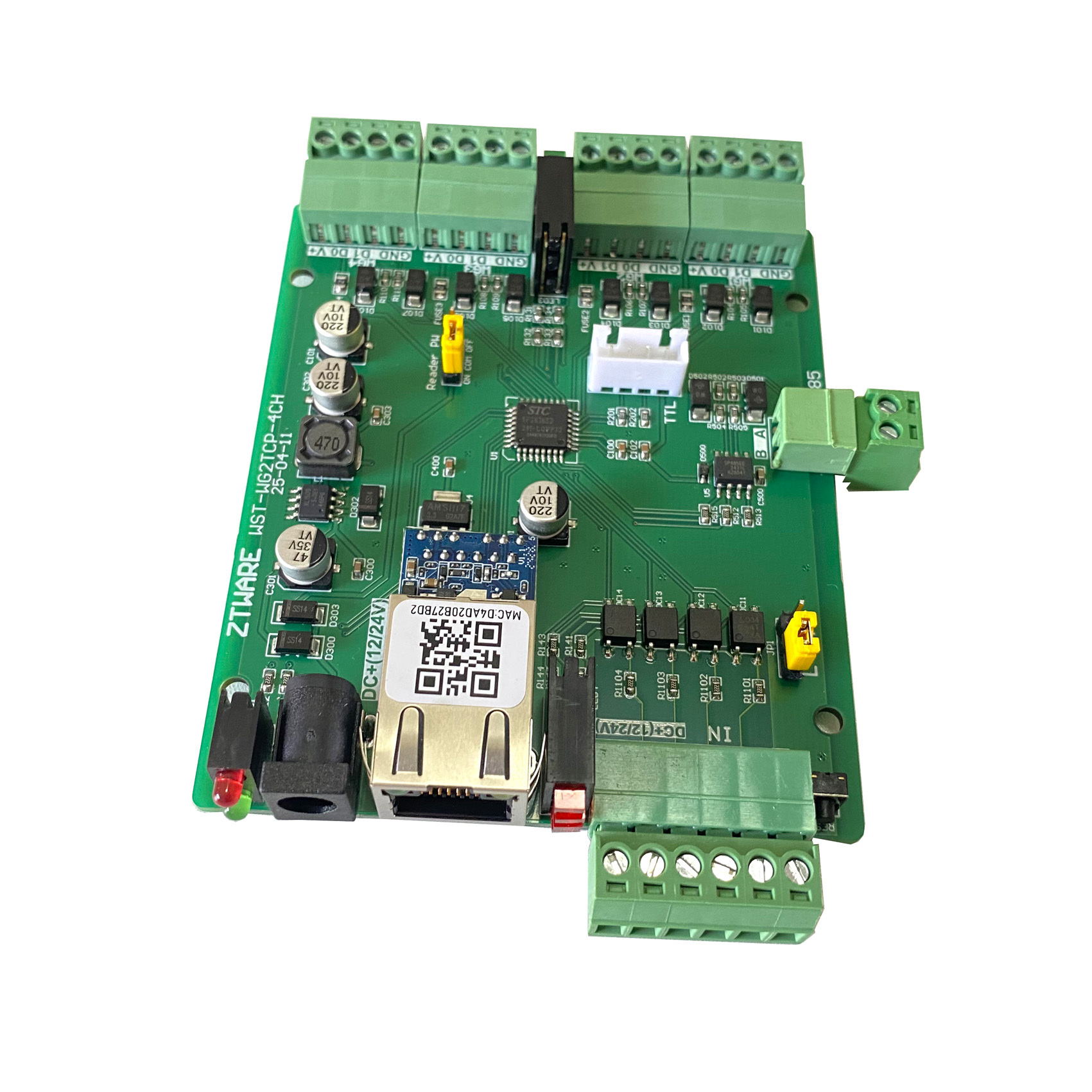

4CH wiegand to TCP/IP converter

Model:WST-WG2TCP-4CH

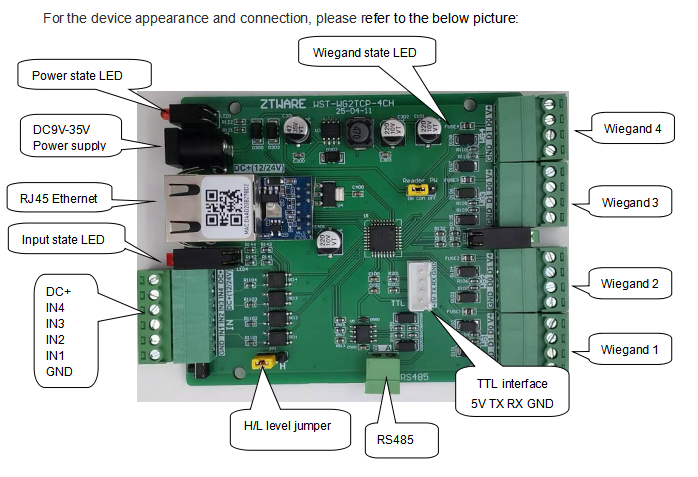

The converter design for where request transfer data between Wiegand and Ethernet communication. It has 4 channels of Wiegand input/output interface, 4 channels of dry contact input interface, and a 10M/100M Ethernet RJ45 interface, a TTL interface, RS485 interface and a DC power interface (DC12V/24V). The default transfer format based on HEX card number as standard and ASCII for optional. The device can widely use for security door access control system.

• Using high quality electronic integrated module and provide good electrical properties.
• Support 4 channels of Wiegand input and output
• Support 4 channel of dry contact input interface
• Support RS485 interface
• Working power: DC12V/DC24V (exact DC9V to DC24V)
• Restore factory default
• Upgrade firmware via TTL network
• Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
• Across the gateway, switches, routers
• Can work in LAN, also can work in the Internet (external network)
• Support various LED to indicate work status
• Guarantee reliable data transmission and long working life.
• Set software watchdog timer (about 1s for restart) for keep the device working fine.
• Support customization

• Size: 110mm x 76mm x 20mm
• Weight: about 50g (PCB board, without steel housing)
• Power supply: DC9V to DC24V/1A, suggest DC12V
• Static working current: <150mA (DC12V)
• Dynamic current: when all relay closed less than 320mA (under DC12V power)
• Wiegand interface: support 4CH Wiegand input and output (WG26/34/66 bit)
• Input: support 4CH dry contact electric input (provide jump for set high/low level)
• Communication interface: 10M/100M RJ45 Ethernet and UART-TTL,RS485
• Baud rate: 9600BPS (default, can set by software)
• Address ID: none (default ID none, can set by command, range: 1 to 255)
• Indicator: LED indicator for power, TCP/IP communication and Wiegand communication
• Reset button: press it about 3s for return to factory settings (after 4CH input LED bright red reset ok)
• Ethernet module: USR-K2 (default)
• Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.
• Ethernet user name: admin, Password: admin, Default IP: 192.168.0.7
• Network mode: TCP client\server (max for 4 Clients), UDP Client\Server, HTTDP Client
• TTL interface: DC5V, TX, RX, GND, design for testing and upgrade firmware.
• Operating Temperature:-40-85 C (-40-185 F)
• Storage Temperature:-40～85 °C（-40～185 °F）
• Relative humidity: 5%-95% (no condensation)
• Software watchdog timers: about 1s restart.
• Average fault-free time: 100000 hours
